Shaping an Air Force    Andravida    Tanagra    Dekelia

Hellenic Air Force - Elliniki Polemiki Aeroporia
Araxos Air Force Base
Greece
September 2010


The LTV A-7 Corsair II's of 116 Combat Wing (Pteriga Machis - PM), 336 Squadron (Mira - M)

Developed in the early 1960’s to replace the Vought F-8 Crusader, the Ling-Temco-Vought A-7 Corsair II first saw service from 1967 with the United States Navy as a carrier-based subsonic light attack aircraft. The more powerful A-7D entered service with the United States Air Force from 1970. The A-7 was one of the first fighter aircraft to feature a Head Up Display (HUD) and an Inertial Navigation System (INS). The aircraft was finally retired from US service in 1991.

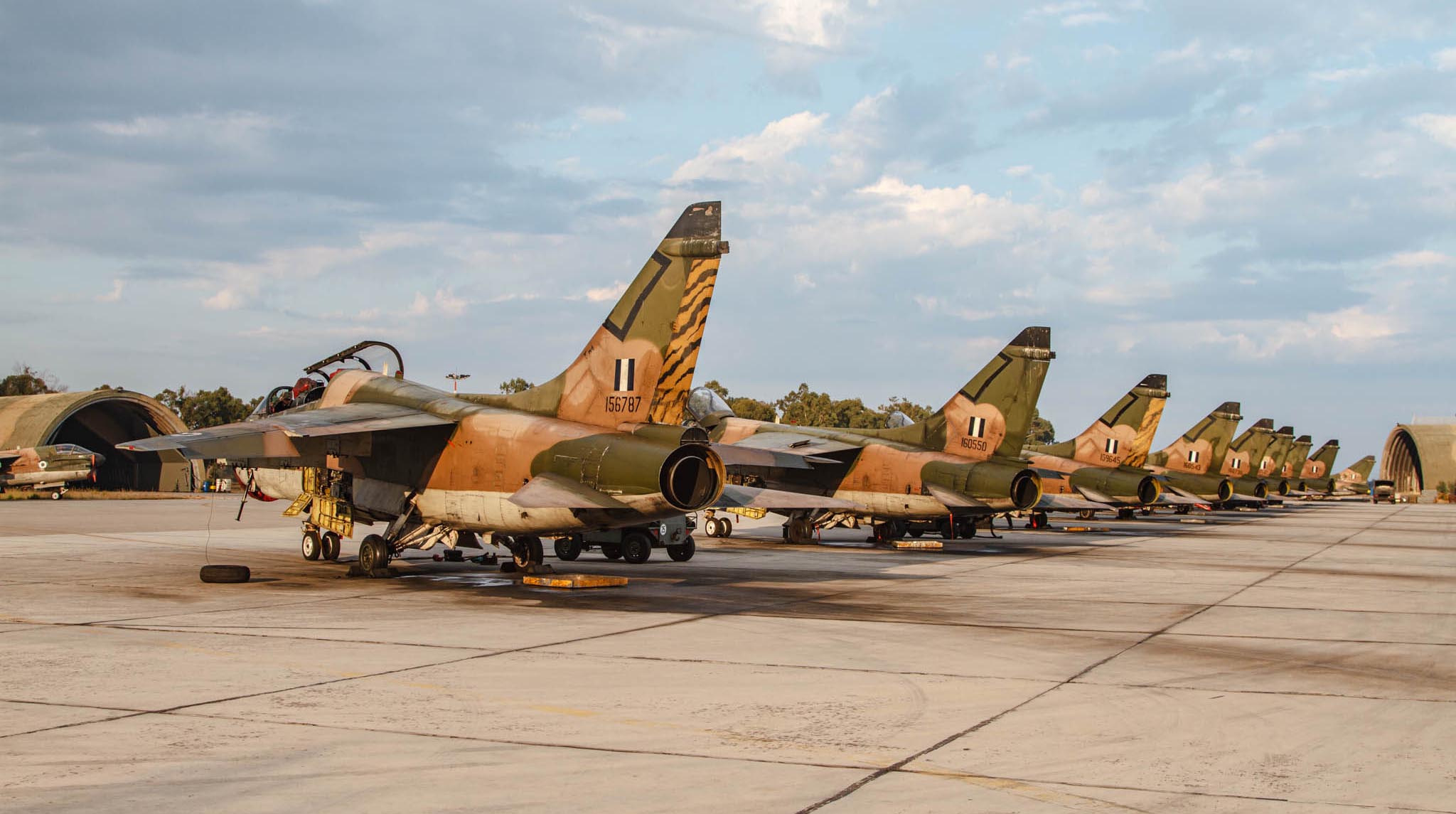

Image 102_0872w6
Nine TA-7C and A-7E Corsair II's, two still have tail markings of the disbanded 335 'Tiger' Squadron

336 Mira badge, image 102_0930w5Image 102_0931w5
The Hellenic Air Force (HAF) received 60 new A-7H Corsair II’s from 1975, these were based on the A-7E but did not have air-refuelling capability. They were initially based at Larissa with 347 ‘Perseas’ Squadron and at Souda with 340 ‘Fox’ and 345 ‘Lailaps’ Squadrons. These original aircraft remained in service till 1997 when the surviving aircraft were put in to storage at Agrinion and Tanagra. In 1980 the HAF also took delivery of five new two-seat TA-7H’s which were flown until 2007 before they too went into storage.
In 1992 60 A-7E’s were acquired along with six TA-7C’s these aircraft that had previously been operated by the USN. These aircraft were delivered between 1992 and 1994 to Araxos air base for 116 Combat Wing, 335 ‘Tiger’ Squadron and 336 ‘Olympos’ Squadron. They replaced the Lockheed F-104G Starfighter which was eventually retired in March 1993.
A further six TA-7C were added to the fleet, taken from AMARC storage in the Arizona desert in April 2001.
In 2002 all the remaining A-7’s were transferred to Araxos air base. 335 Squadron ceased flying the A-7 on February 27, 2008 many of their aircraft bolstered those operated by 336 Squadron and surplus aircraft were put in to open storage at Araxos. 336 continues to fly the A-7E and TA-7C and has now the distinction of being the last unit in the world to fly the A-7 Corsair II.

The A-7’s varied role with the HAF includes close air support (CAS), tactical support maritime operations (TASMO), ground attack and bombing operations. The A-7 can conduct in-flight refuelling operations both as receiver and tanker to extend its range. With the imminent retirement of the A-7 by September 2010 in-flight refuelling training had ended.

The A-7E has an internally mounted M61A1 20 mm six barrel cannon, six wing pylons and two fuselage launch stations. The pylons can carry a large single weapon, multiple racks capable of six weapons per rack, or triple racks with three weapons per rack.

The wing pylons can carry four wing-mounted 300 gallon fuel tanks and a combination of a wide range of general-purpose bombs totalling 15,000 lb (6,800 kg), including; up to 30× 500 lb (230 kg) Mark 82 bombs, Paveway Laser-Guided Bombs (LGB), AGM-45 Shrike, AGM-62 Walleye, AGM-65 Maverick, AGM-88 HARM, and GBU-15 electro-optical glide bombs. It has been reported that Greece also imported over 4,000 CBU-55B cluster bombs between 1970 and 1995. The AFDS (Autonomous Free-flight Dispenser System), containing 16 BLU-108B bomblets was also certified for the A-7. Greece previously participated in NATO nuclear weapons sharing using the A-7 to deploy US tactical B.61 nuclear bombs, in 2001 for strategic reasons they were put in to storage. They were optimised for the AIM-9L/P Sidewinder for self-protection utilising the two fuselage launch stations.

After 1986 the A-7Es were equipped to carry the AAR-45 LANA (Low-Altitude Night Attack) FLIR (Forward Looking Infra-Red) pod which projects an amplified light image on the HUD and in conjunction with radar, it enables terrain following down 200 feet (60m) at to 460 mph (740 km/h). Smart weapons in conjunction FLIR they can be delivered day and night.

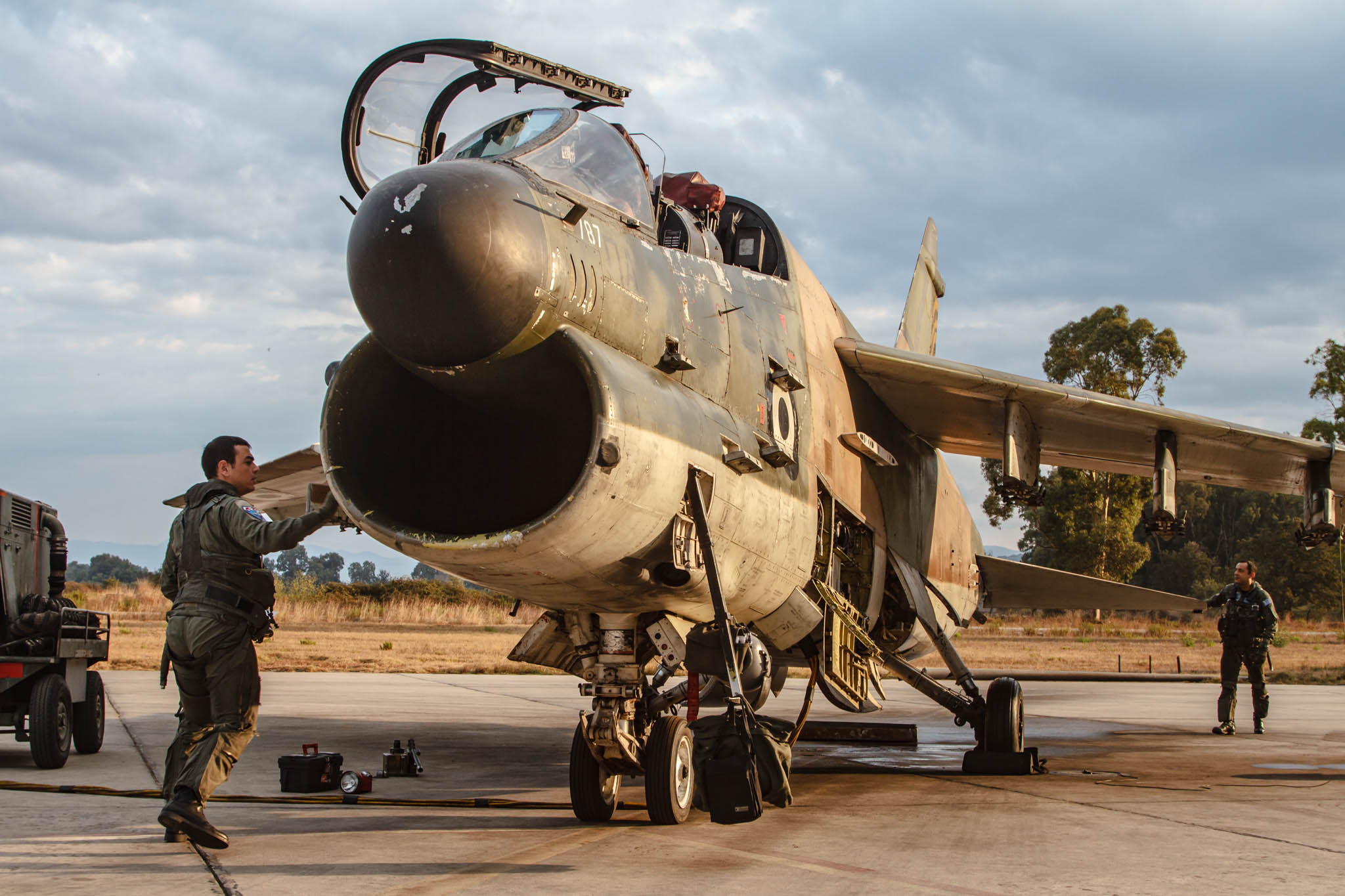

  Image 102_0883w6+
TA-7C Corsair II (156787) during the pre-flight check by the aircrew

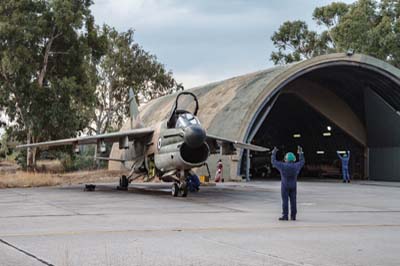

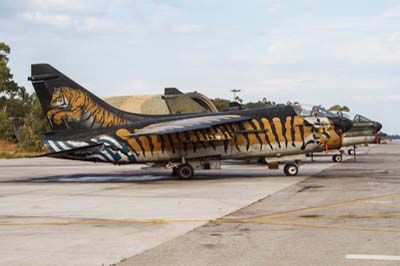

Click to enlarge image 102_0934w6
Click to enlarge image 102_0927w6
Click to enlarge image 102_0871w6
Click to enlarge image 102_0924w6

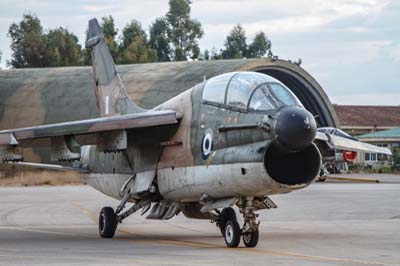

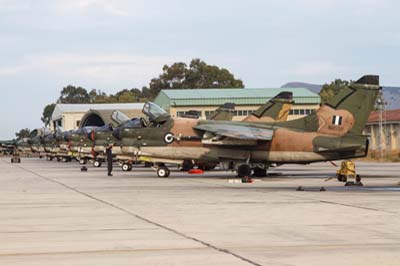

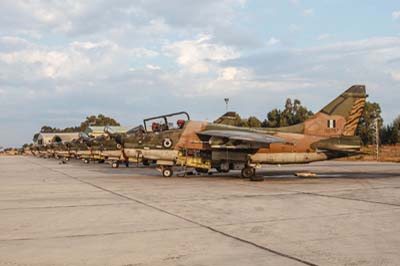

Left to right: A-7E's (158825 and 160717) and TA-7C (156787).

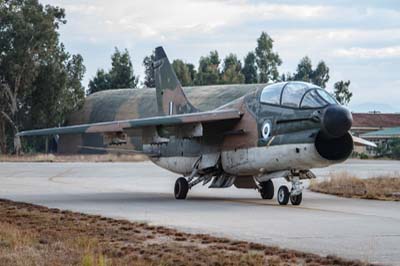

Click to enlarge image 102_0933w7

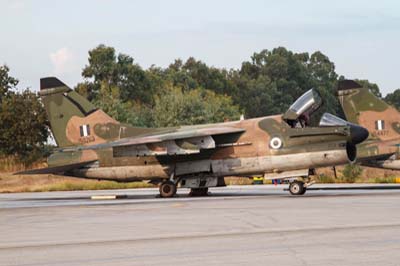

Click to enlarge image 102_0891w7
Click to enlarge image 102_0912w7

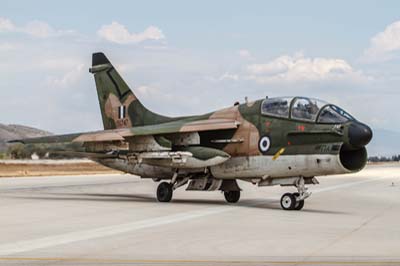

Click to enlarge image 102_1216w7

Left to right: A-7E's (160550 and 159263) and TA-7C's (154477 and 156747).

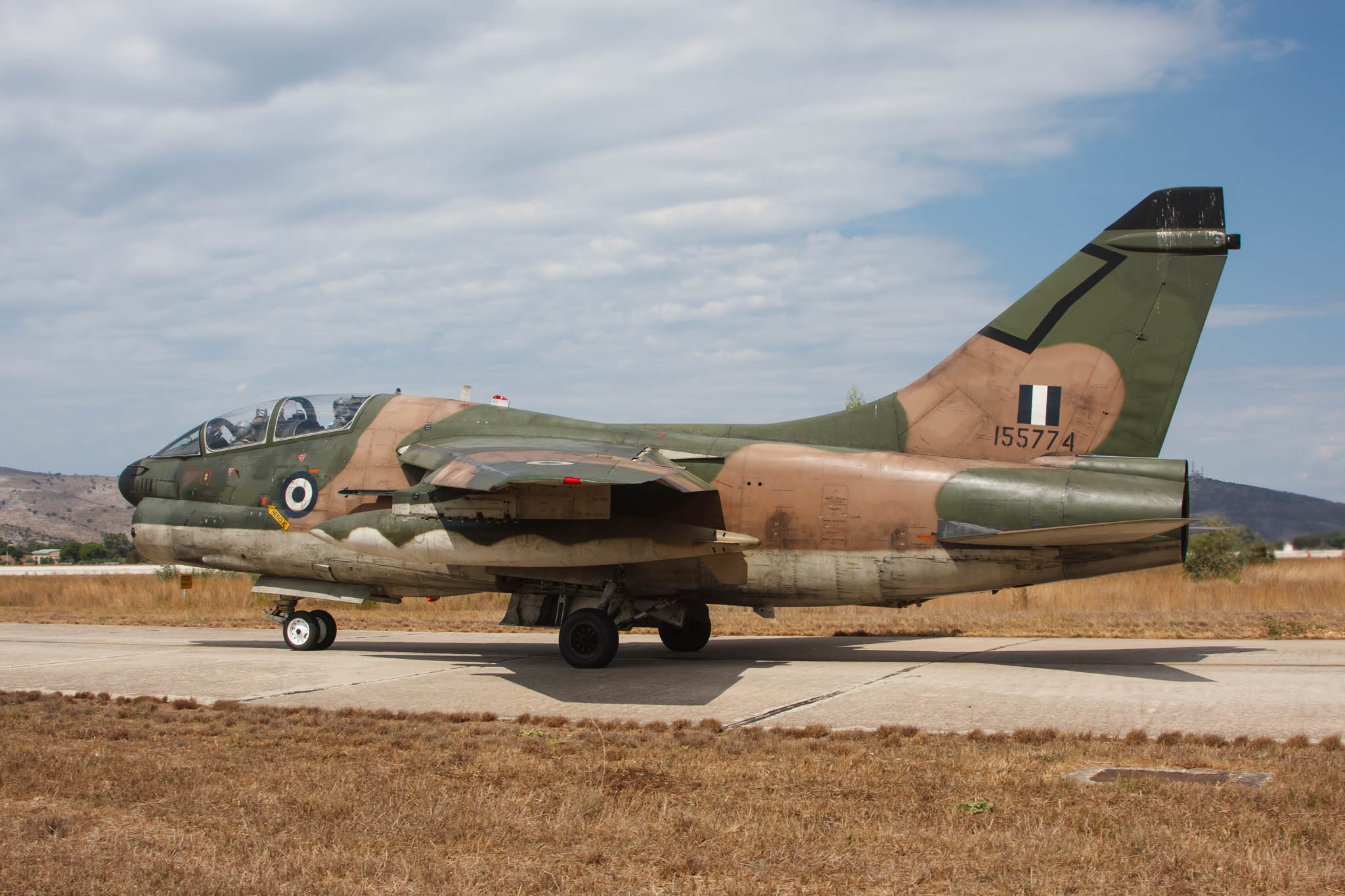

   Image 102_1412w5+
TA-7C Corsair II ('155774' a mis-paint it is really 156774, the real 155774 was an F-4J lost in Viet Nam in 1968)
Click to enlarge image 102_1343w5
Click to enlarge image 102_1260w7

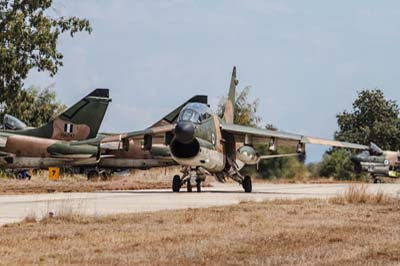

Click to enlarge image 102_1249w7

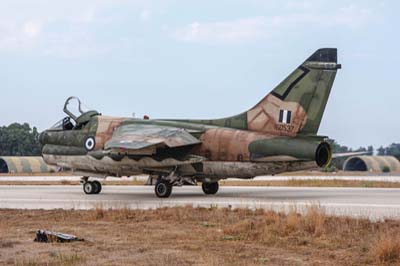

Left to right: A-7E (160537) and TA-7C's ('155774' and 154477).

  Image 102_1046w6

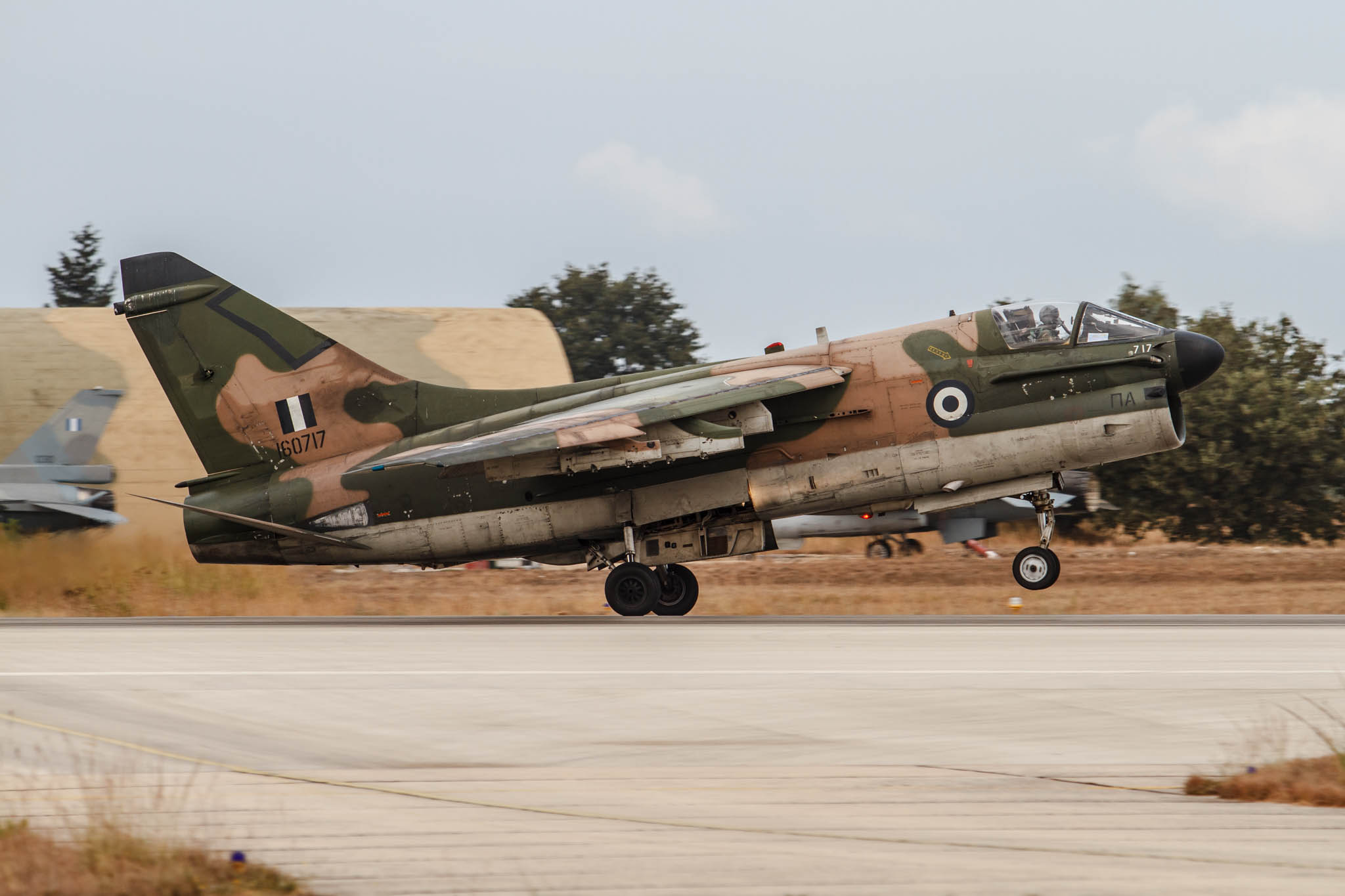

A-7E Corsair II (160717)

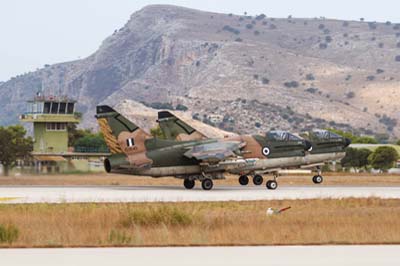

Click to enlarge image 102_1096w6

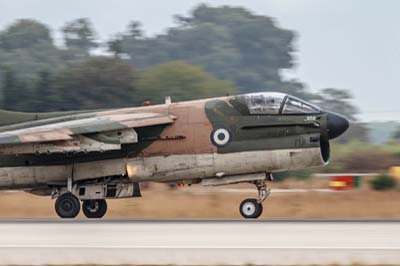

Click to enlarge image 102_0957w6

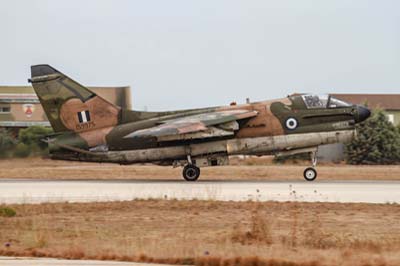

Click to enlarge image 102_1038w6


Left to right: A-7E's (159645, 160550 and 159775).

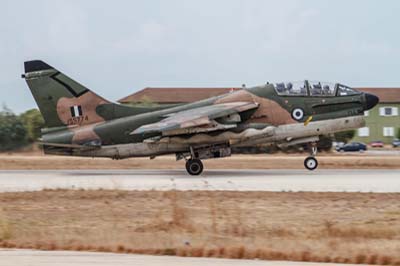

Click to enlarge image 102_1302w7+

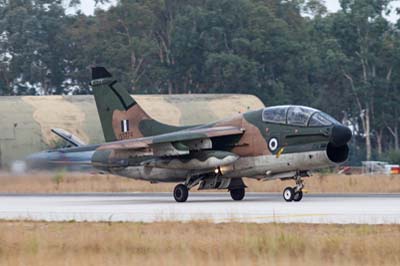

Click to enlarge image 102_0942w6

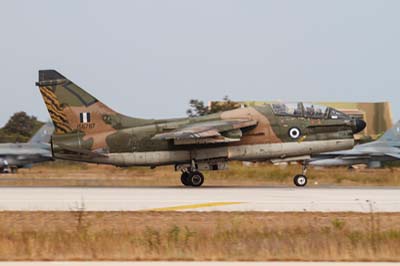

Click to enlarge image 102_1102w6


Left to right: TA-7C's ('155774' a mis-paint it is really 156774, 157744 and 156787).

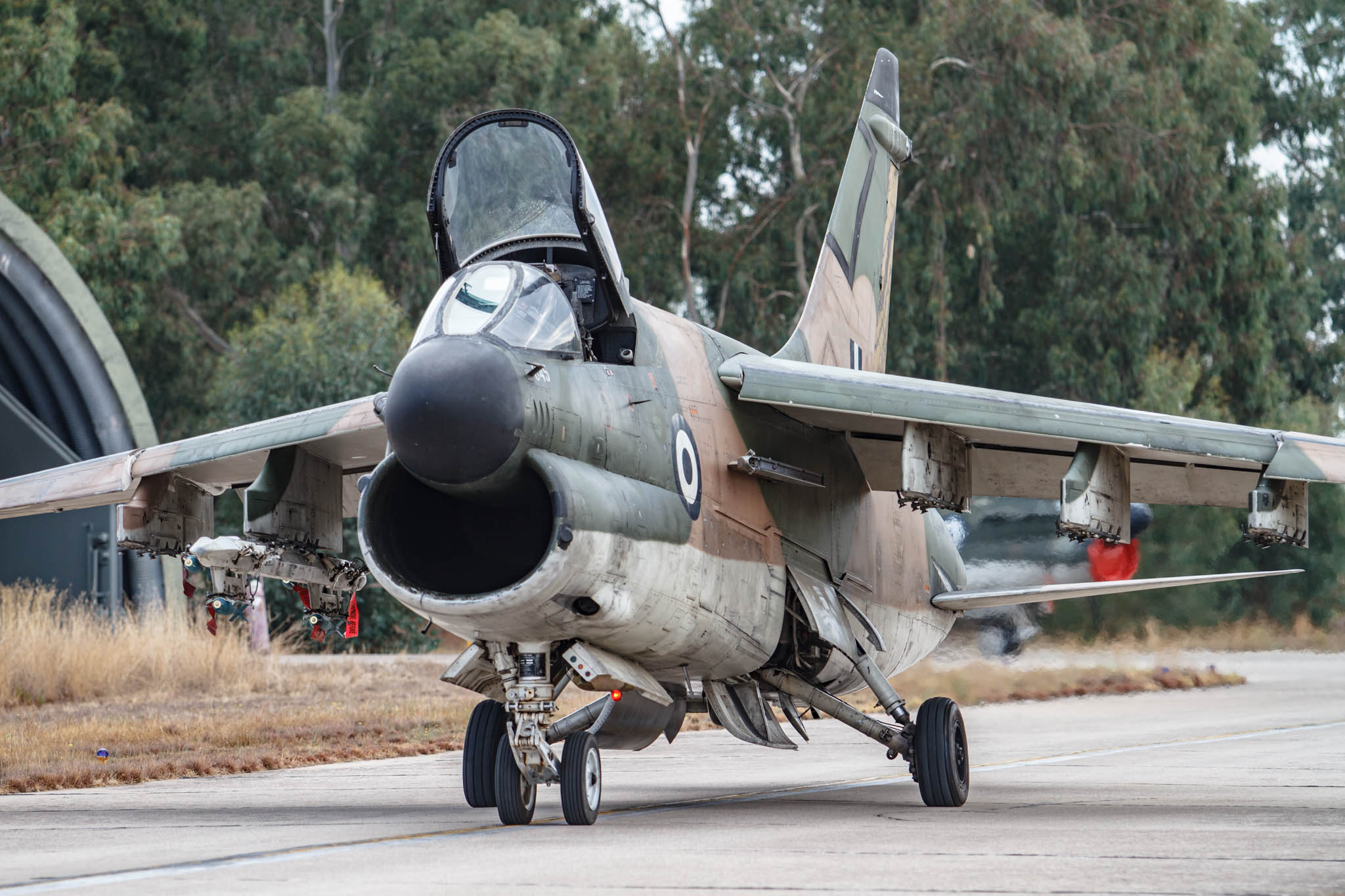

Image 102_1030w7+
A-7E Corsair II (159645) with practice bombs on the starboard centre wing pylon.

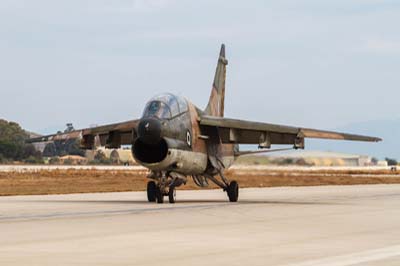

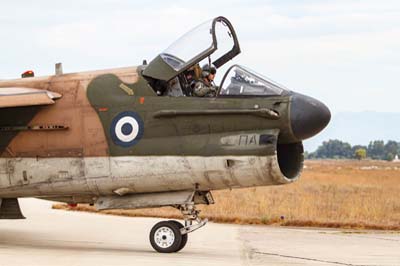

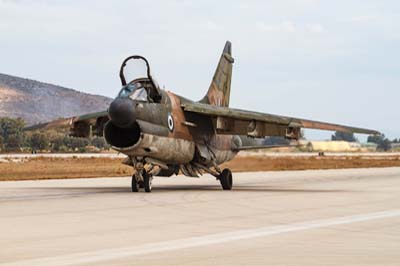

Click to enlarge image 102_1065w7

Click to enlarge image 102_1073w6

Click to enlarge image 102_1105w6
Click to enlarge image 102_1136w7

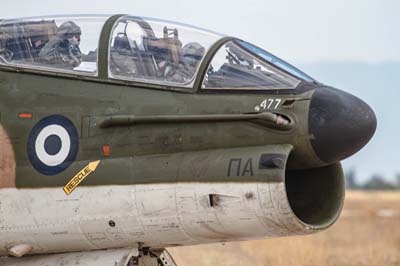

Left to right: A-7E's (159975 and 160717) and TA-7C's (156787 and 154477).

Image 102_1407w6

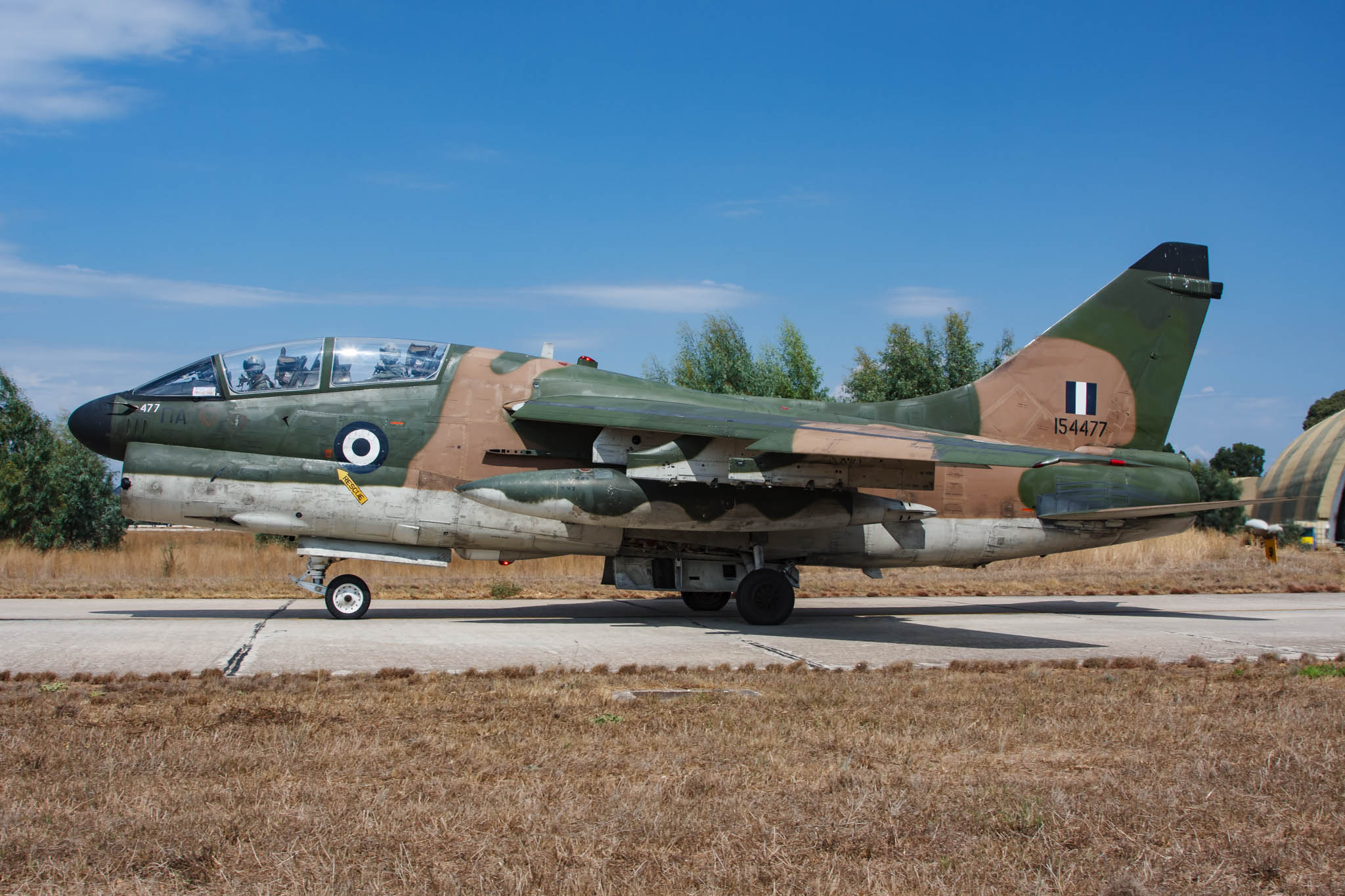

TA-7C Corsair II (154477)

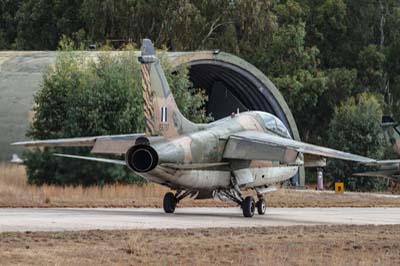

Click to enlarge image 102_1115w7+

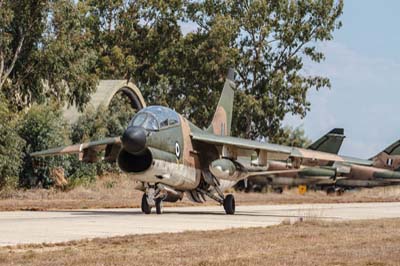

Click to enlarge image 102_1253w7

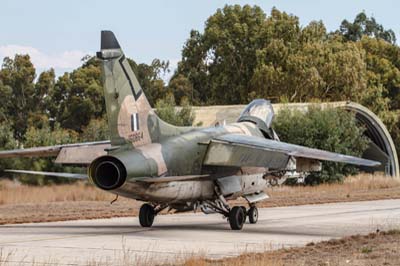

Click to enlarge image 102_1231w7

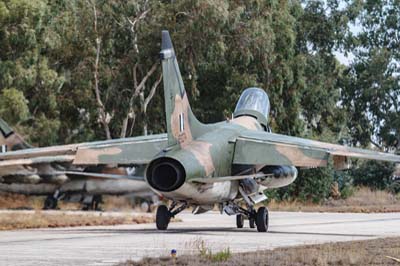

Click to enlarge image 102_1245w7

Left to right: TA-7C's (156787 and 154477) and A-7E's (160864 and 159274).


A complete lack of symmetry for tanks and a variety of weapons

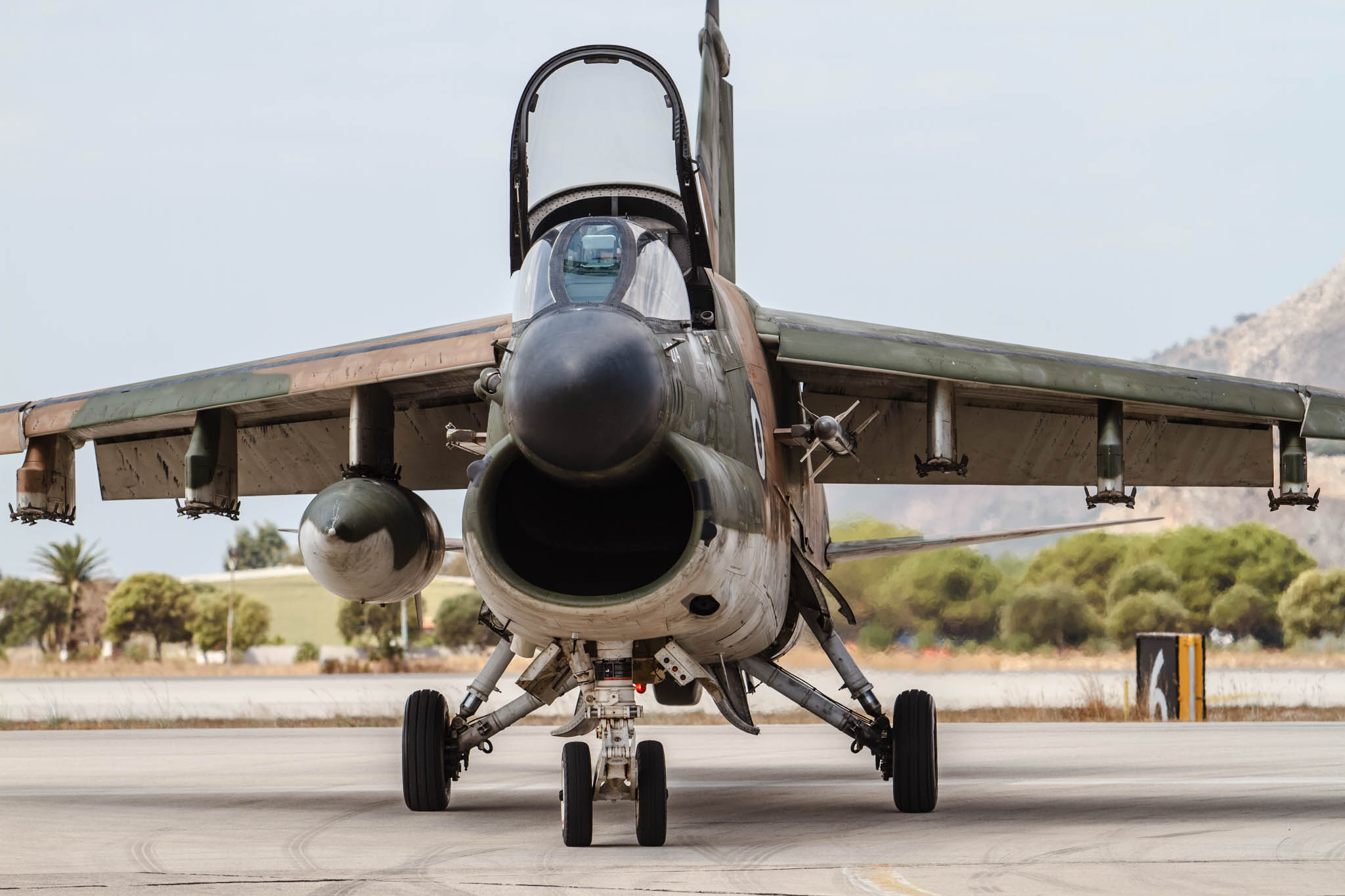

  image 102_1238w7
A-7E Corsair II (159274) with an AIM-9 Sidewinder air-to-air missile on the port fuselage rack and a single 300 gallon wing tank.

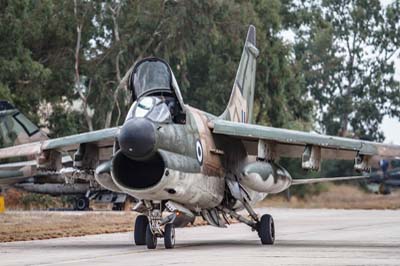

Click to enlarge image 102_1016w7+

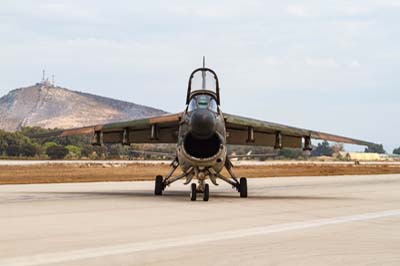

Click to enlarge image 102_1068w6

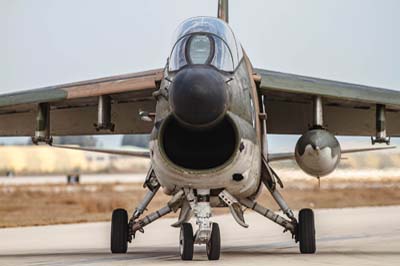

Click to enlarge image 102_1134w7

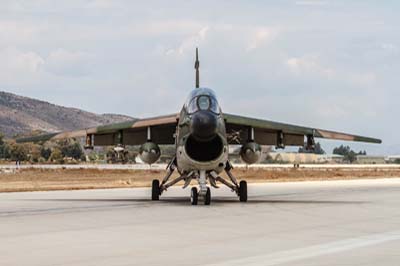

Click to enlarge image 102_1214w7

Left to right: A-7E (160537) with two under wing tanks and practice bomb dispenser,
A-7E (159975) without any underwing stores,
TA-7C (154477) with one under wing 300 gallon fuel tank on port inner pylon,
TA-7C (156747)with two under wing 300 gallon fuel tanks, a practice bomb dispenser on starboard centre pylon and a AIM-9 Sidewinder air-to-air missile on port fuselage pylon.

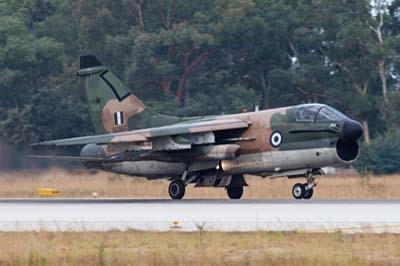

Click to enlarge image 102_0948w6

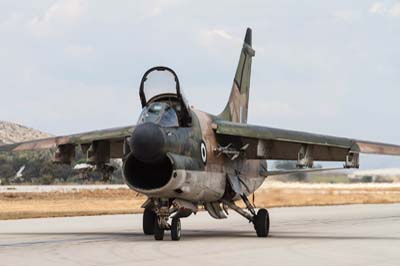

Click to enlarge image 102_1225w6

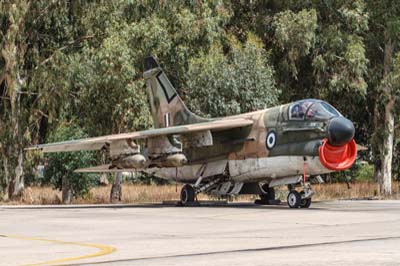

Click to enlarge image 102_1261w7

Left to right: A-7E (160866) with a practice bomb dispenser on the starboard centre pylon and a AAR-45 LANA (Low-Altitude Night Attack) FLIR (Forward Looking Infra-Red) pod on starboard inner pylon. It projects an amplified light image on the HUD.
A-7E (160864) with an AIM-9 Sidewinder air-to-air missile on port fuselage pylon.
A-7E (160566) with two CBU-55B cluster bombs on starboard outer pylons.

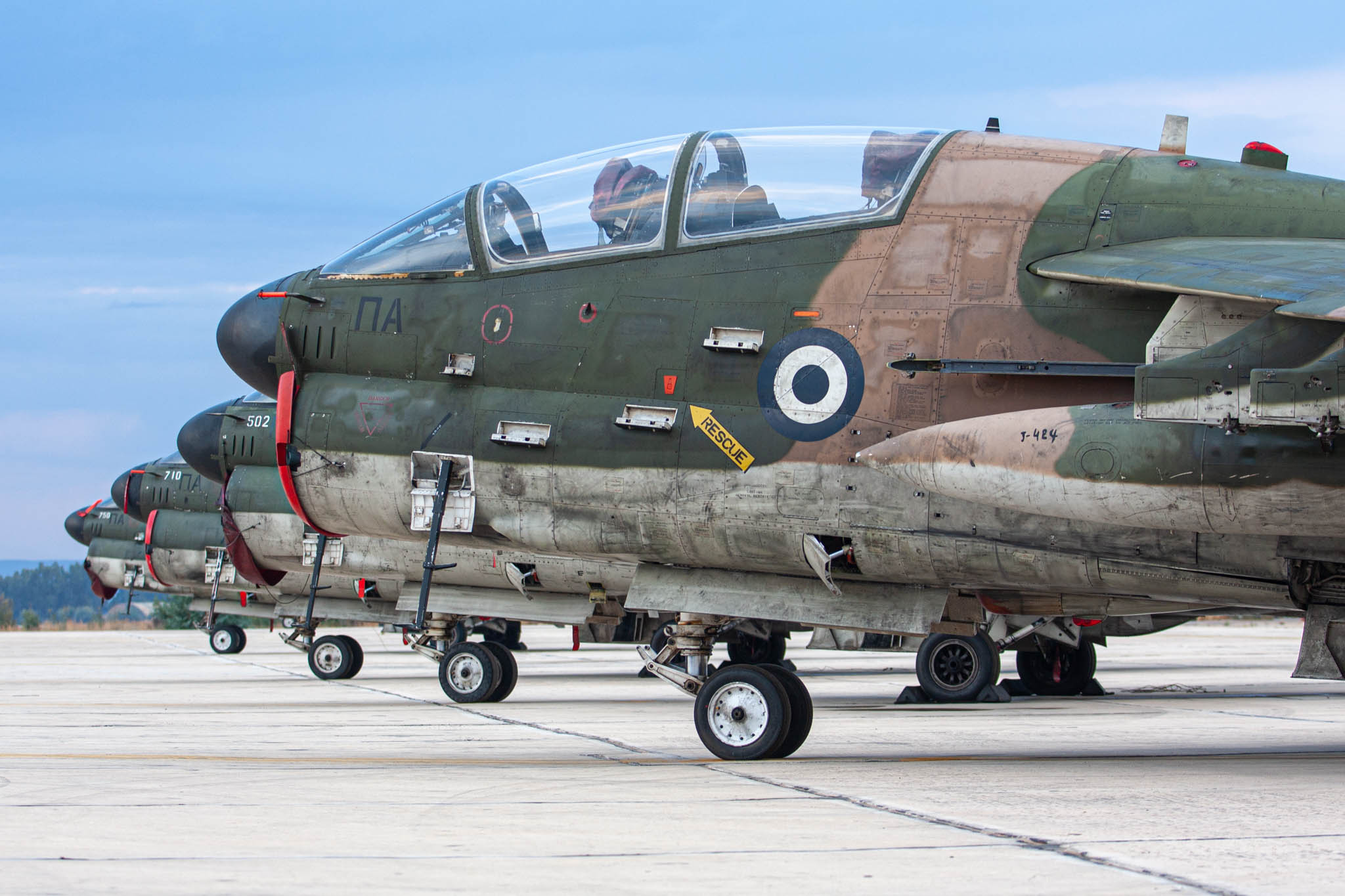

Image 102_1309w5

TA-7C and A-7E on the ACM ramp

Click to enlarge image 102_1317w5

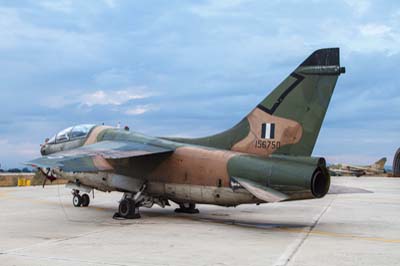

Click to enlarge image 102_0857w7
Click to enlarge image 102_0854w6

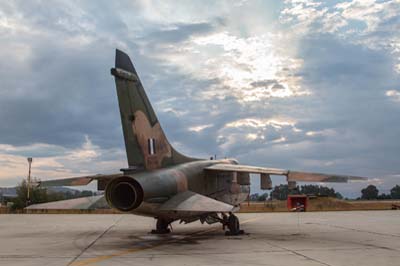

Click to enlarge image 102_0862w7

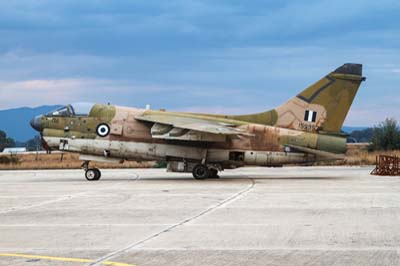

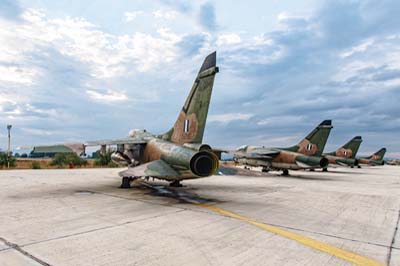

Left to right: The ACM ramp with TA-7C's (156795 and 156750) and A-7E's (159952 and 160710).


The Lockheed Martin F-16C/D Block 52M Fighting Falcons of 116 Combat Wing, 335 Squadron

335 Mira badge, image 102_1349w5Image 102_1350w5The first of the latest batch of F-16 Block 52M arrived at Araxos on May 22, 2009 for the 335 Squadron to replace the LTV A-7E Corsair, leaving just 336 Squadron to operate the aircraft for an expected further two years. The batch was completed when the last Block 52M (F-16D serial 030) arrived with three F-16C Block 52M’s on January 28, 2010.
The infrastructure of Araxos had to be upgraded in time for the first delivery. The new facilities included two aircraft hangars, two squadron operations buildings and an engine maintenance building. A flight simulator resides in a building shared with the A-7 pilots of 336 Squadron.
Colonel Kostas Vouzios, commander of 116 CW since June 2008 was brought in to manage the move from the venerable A-7 to the most modern F-16s, he announced earlier this year, “It is my job is to make sure the transition goes smoothly.” Col. Vouzios oversaw the introduction of the first Block 50 F-16s when commander of 347 Squadron at Néa Anchialos, for the Peace Xenia II program, he has over 2,000 hours of flying time in the F-16. During the Peace Xenia III program when with HAF’s Tactical Air Force command, he helped plan the creation of the first Block 52+ F-16 squadrons at Souda Bay on Crete.
Col Vouzios announced that 335 Squadron had passed its Operational Evaluation test in March 2010, the final phase of the OpEval included four Block 52M’s and an Erieye AEW aircraft using the Link-16 network. Ground attack scenarios using JSOW's (Joint Stand Off Weapon) delivered in November 2009 were included in the evaluation.

The next task for the 45 assigned pilots and their 30 aircraft is the expansion of the Squadron's capabilities to include a reconnaissance role. With the Goodrich DB-110 airborne reconnaissance system, a pilot day and night can capture images using its electro-optical sensors, transmitting images in real time to a ground based command centre. “We have to start our operational concept for the reconnaissance mission from scratch”, reported Col Vouzios. “The manufacturer provides the data on how the system works, but the operational tactics are country-specific. We can’t borrow from other users’ experience, so we have a lot to accomplish with this advanced capability”.

335 Mira can trace its history back to October 1941 when it was formed during the German occupation of Greece. The Squadron’s first pilots were trained by the RAF in Iraq from 1940 before they redeployed to Italy and finally to Greece in October 1944. They were initially equipped with the Hawker Hurricane Mk.II which were later replaced by the Supermarine Spitfire Mk.V in 1943. In 1953 the Squadron got its first jets, the Republic F-84G Thunderjet and the Lockheed RT-33A Shooting Star. In 1957 they re-equipped with the Republic F-84F Thunderstreak which were in turn replaced by the Lockheed F-104G Starfighter in 1965. In 1977 335 Squadron relocated to Araxos to join 116 CW and continued to fly the Starfighter till 1992, when after 27 years service they were replaced by the A-7E and TA-7C Corsair.

Image 102_0984w7

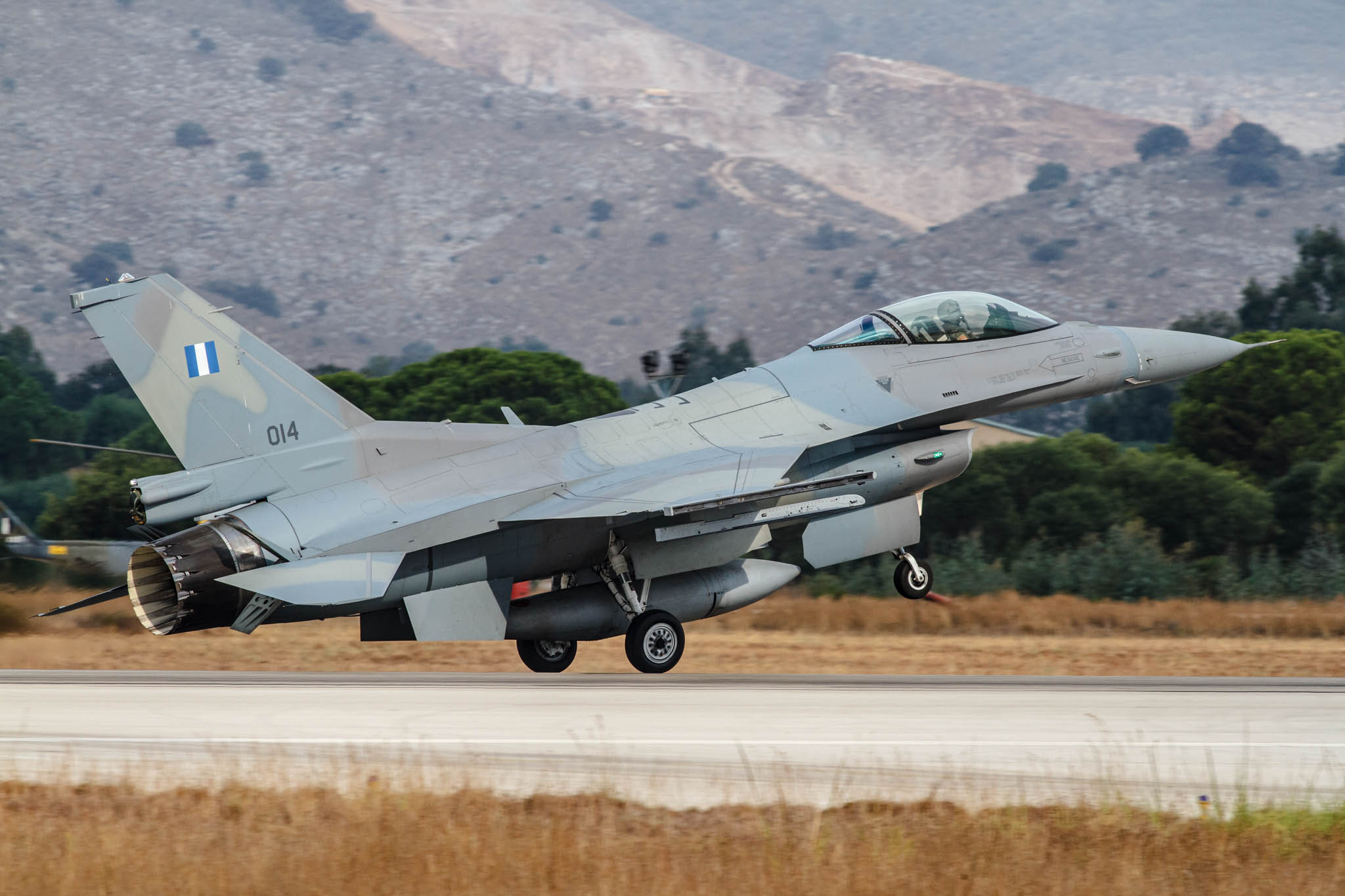

F-16C Block 52M Fighting Falcon (014)

Click to enlarge image 102_0966w6

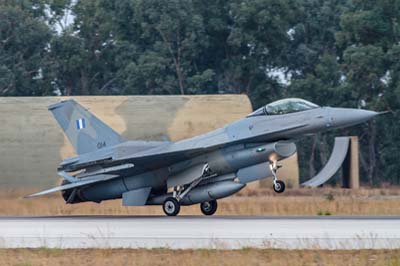

Click to enlarge image 102_0982w6

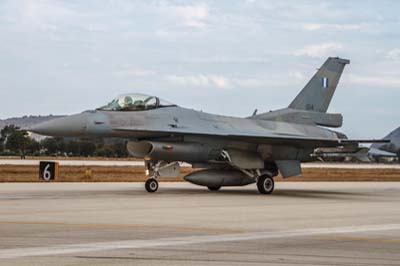

Click to enlarge image 102_1001w7

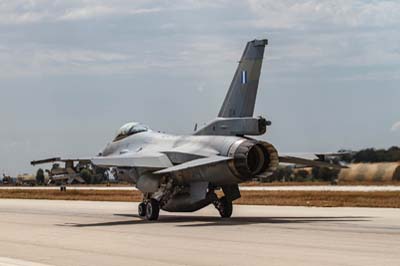

Click to enlarge image 102_1287w6

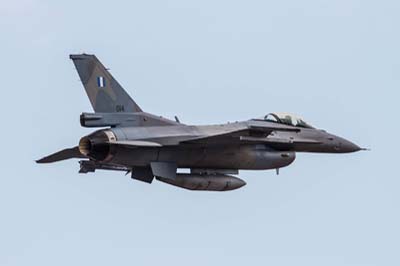

Left to right: F-16C Block 52M Fighting Falcon (014).

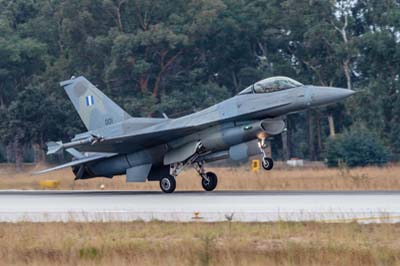

Click to enlarge image 102_0972w6

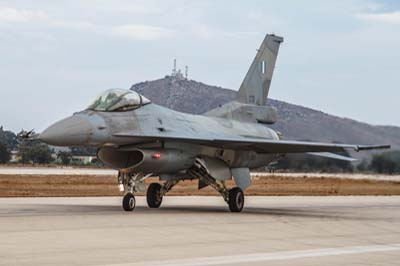

Click to enlarge image 102_0988w7
Click to enlarge image 102_1419w5
Click to enlarge image 102_1272w6-

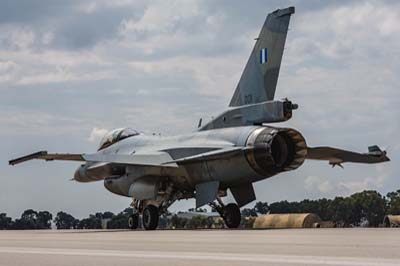

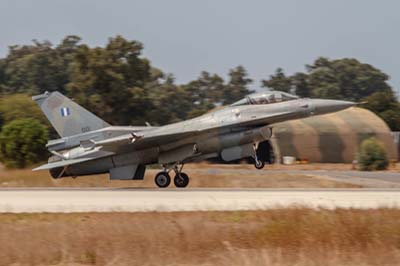

Left to right: F-16C Block 52M Fighting Falcon (001).

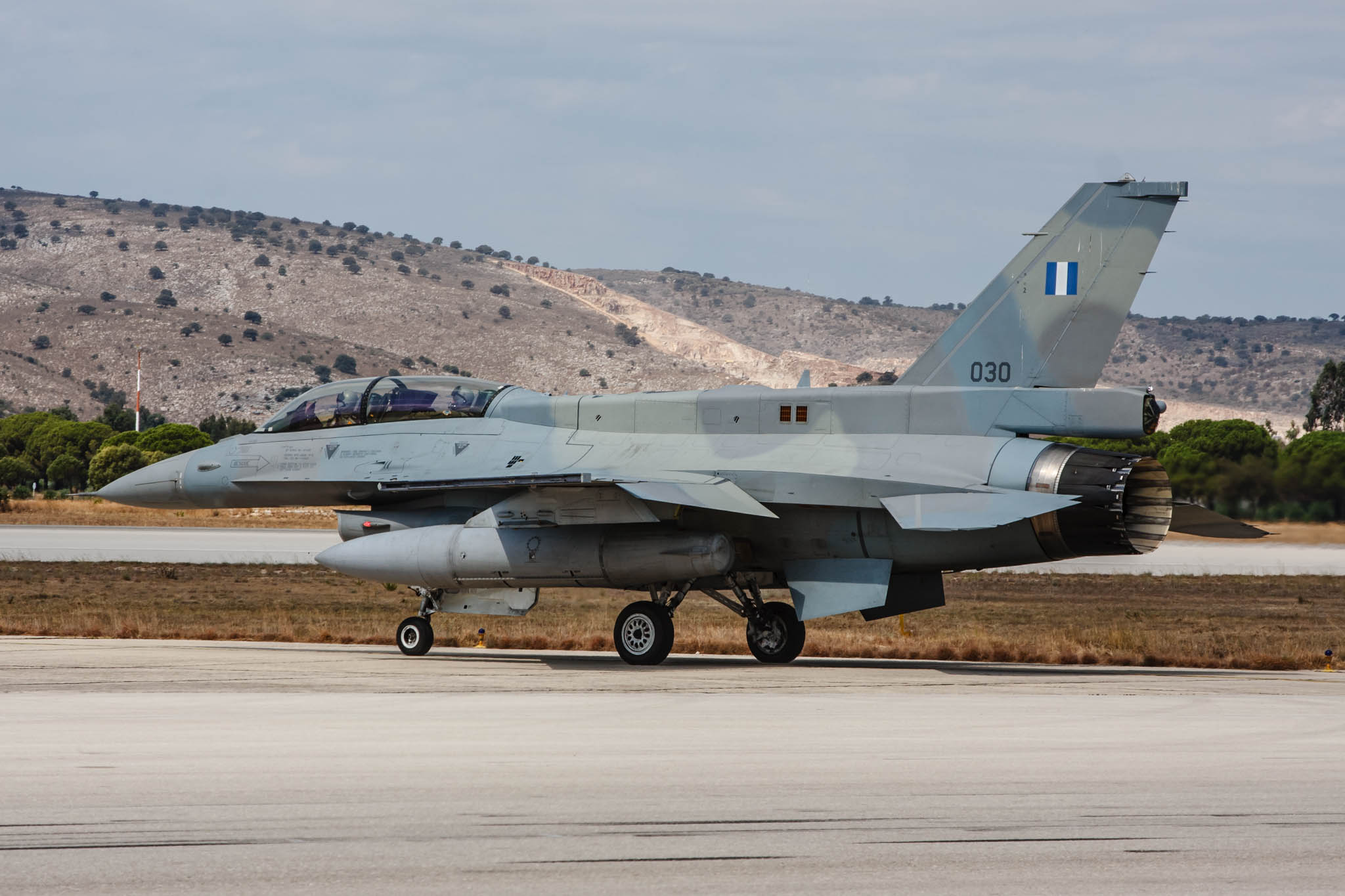

Image 102_1405w5

Two-seat F-16D Block 52M Fighting Falcon (030)

Click to enlarge image 102_1052w6

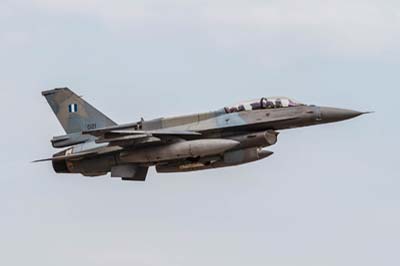

Click to enlarge image 102_1061w6

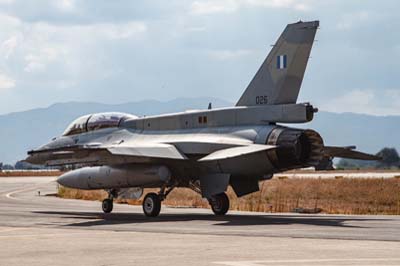

Click to enlarge image 102_1186w6

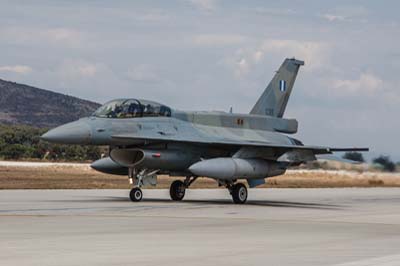

Click to enlarge image 102_1401w5

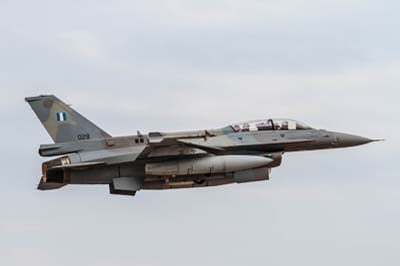

Left to right: F-16D Block 52M Fighting Falcon's (028, 021, 026 and 030).

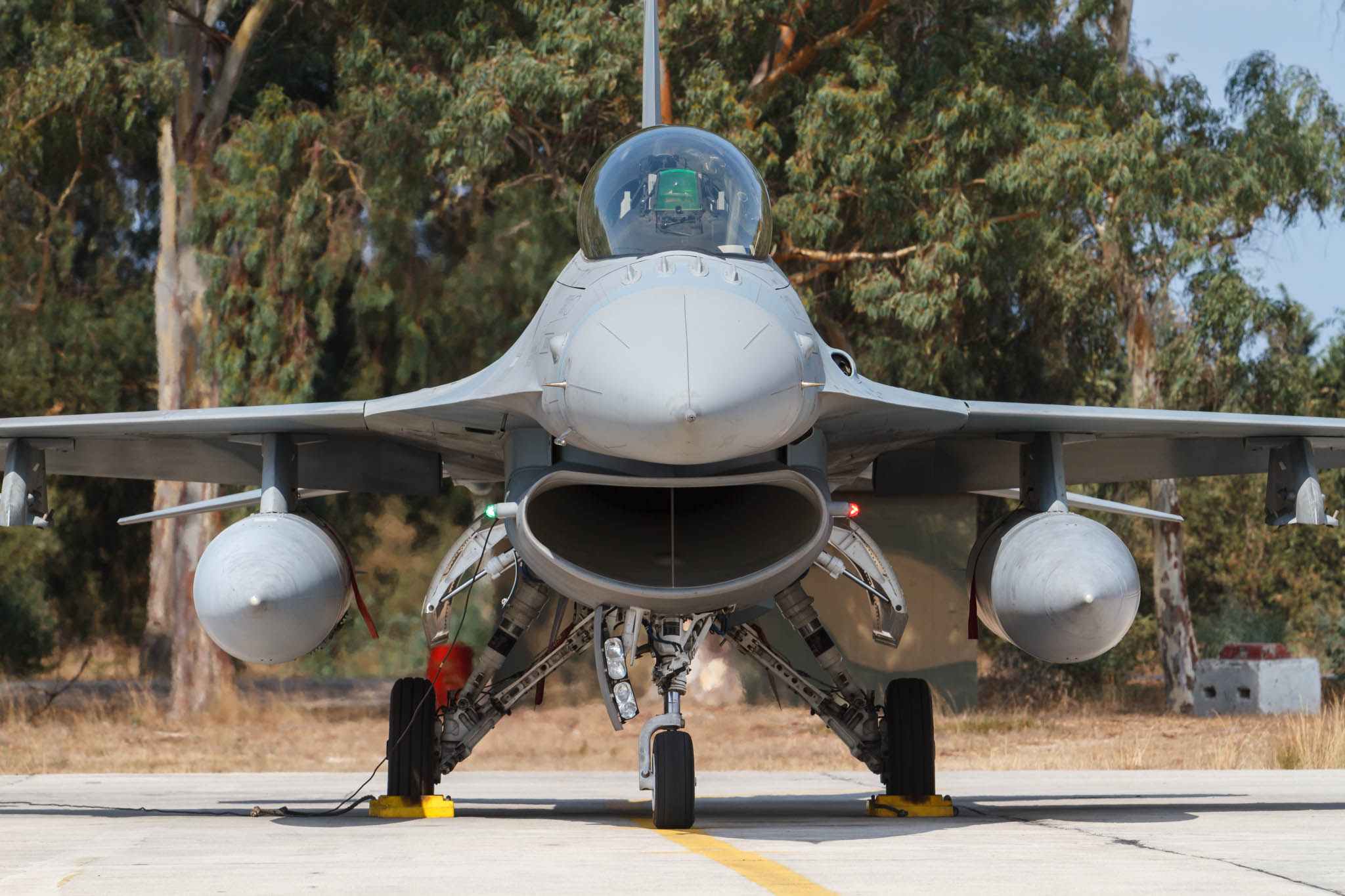

Image 102_1159w6

F-16C Block 52M Fighting Falcon (014).

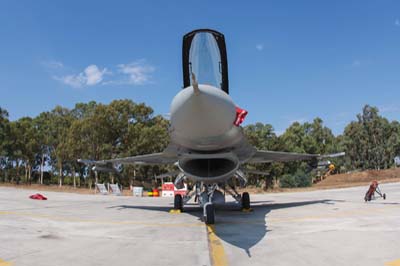

Click to enlarge image 102_1360w5

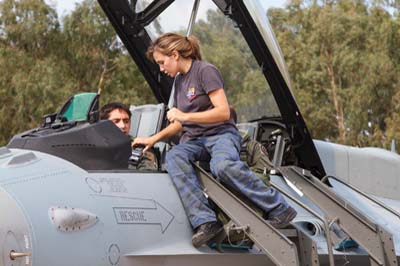

Click to enlarge image 102_1149w7

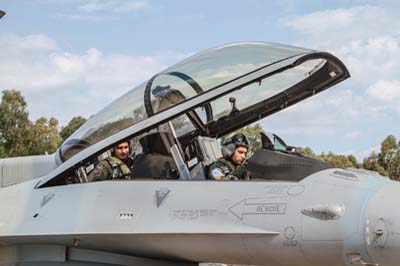

Click to enlarge image 102_1152w7
Click to enlarge image 102_1171w6

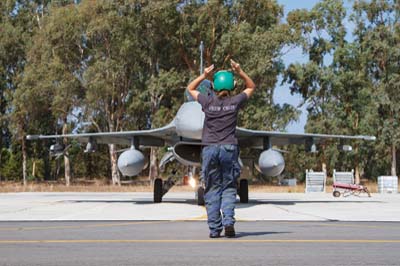

Left to right: Preparing F-16C Block 52M Fighting Falcon (014) for flight.

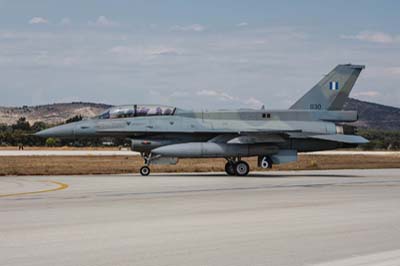

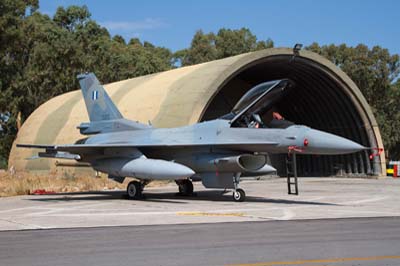

Click to enlarge image 102_1192w7
Click to enlarge image 102_1359w5
Click to enlarge image 102_1403w5

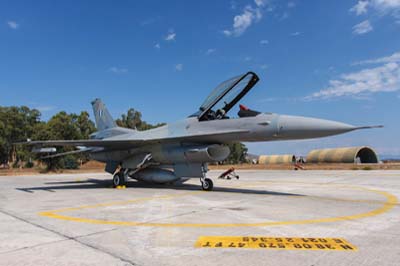

Left to right: F-16C Block 52M Fighting Falcon (020, 014) and F-16D Block 52M (030).
